Industrial 10G SFP+ to SFP+ OEO Fiber Media Converter, 3R Repeater Extender Supports 1.25G/10G Rate Switch, Optic Transceiver up to 120km, CWDM/DWDM DDM Loopback, Redundant 12~48VDC, IP40, DIN-Rail
Industrial 10G SFP+ to SFP+ OEO Fiber Media Converter, 3R Repeater Extender Supports 1.25G/10G Rate Switch, Optic Transceiver up to 120km, CWDM/DWDM DDM Loopback, Redundant 12~48VDC, IP40, DIN-Rail
Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function
ETH-IMC2402-OEO series Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 80â. It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.When only connecting the copper and fiber port, it can be connection between fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 120km.
Features:
⺠Transparent Transport and very low delay
⺠3R function (Regeneration, Reshaping, Re-timing)
⺠Support hot plugging, full state led display, easy installation
⺠Support ITUT prescribed DWDM/CWDM wavelength, and can also display itâs DDM function
⺠Support Loop-back and Jumbo Frame
⺠DIP Switch supports 1.25G/10G fiber data rate switching
⺠Can be as 1G Ethernet Media Converter if using Ethernet
⺠IP40 Aluminum Case
⺠Supports DIN-Rail/Wall-Mount installation
⺠-40°C to 80°C (-40°F to 176°F) operating temperature
Specifications:
- Equipment function: 3R Repeater (Regeneration, Reshaping, Re-timing)
- Protocols: 8.5G Fiber Channel/ SONET OC-192, SDH STM-64 (9.95Gbps)/ 10G WAN (10Gbps)/10G LAN (10.31Gbps)/ OTN OTU-2 (G.709) (10.70Gbps)/ 10G LAN with 255/237 FEC coding (11.09Gbps)/ 10G Fiber Channel (11.32Gbps)/ 10G POS
- Standards: IEEE 802.3 10BASE-T/ IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T/ IEEE 802.3z, 1000BASE-SX/LX/ IEEE 802.3x Full-duplex flow control
Setup/ Installation

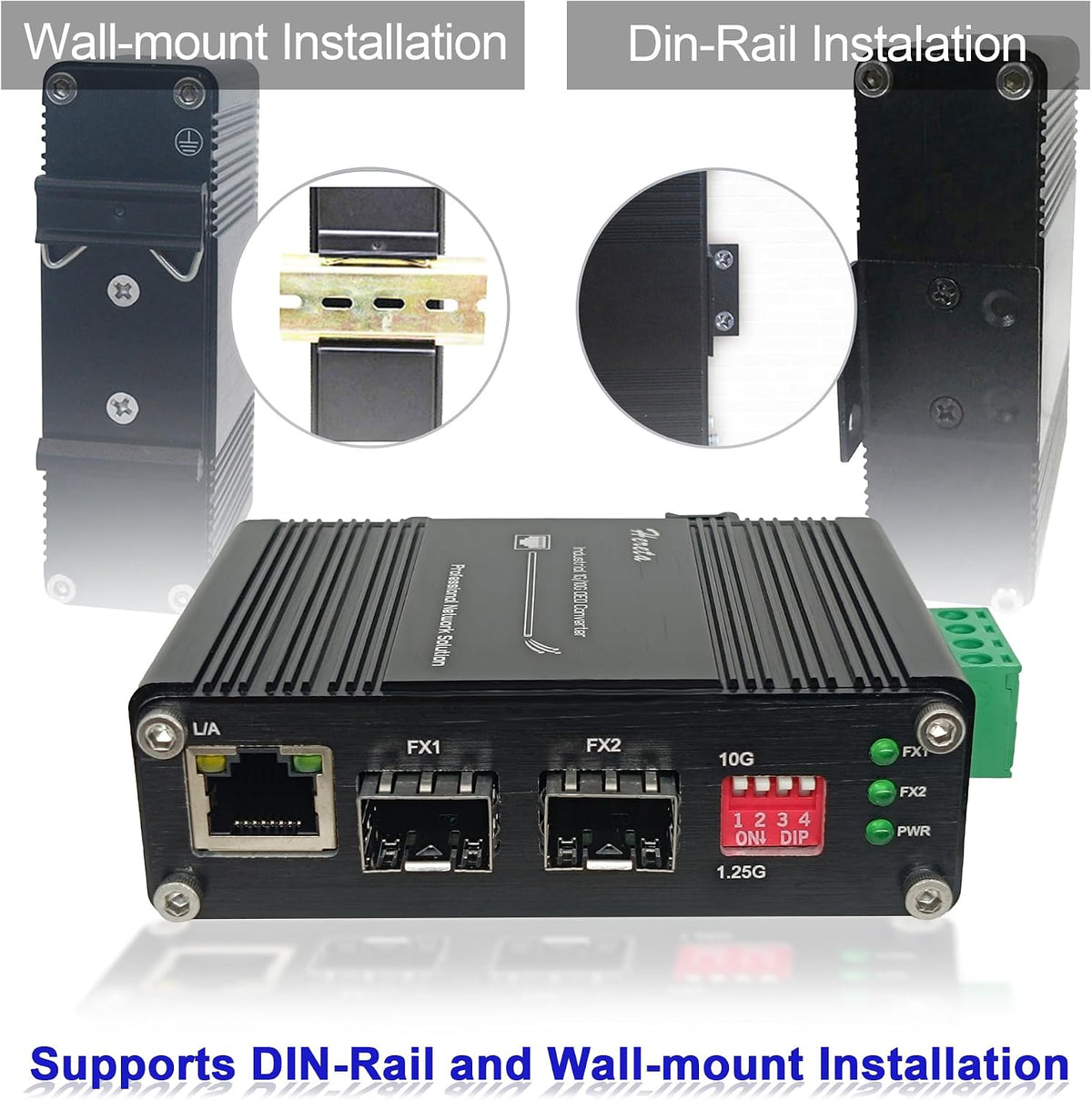

The media converter can be installed on a DIN rail or Wall Mount Installation
- Choose the SFP+ module according to requirement and plug into the SFP slots of the OEO Converter.
- Connect the fiber cable from the device (media converter or switch) on the other end to the SFP+ port of the OEO converter.
- After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.
- After all cables are correctly connected, the indicators will be lit as per port status LEDs.
DIP Switch
- Can manually switch the transmission rate
- Supports 1.25G/10G fiber optic data rate switching
- Hot plugging, loop-back,Jumbo Frame,full state led display available
Industrial Grade Quality

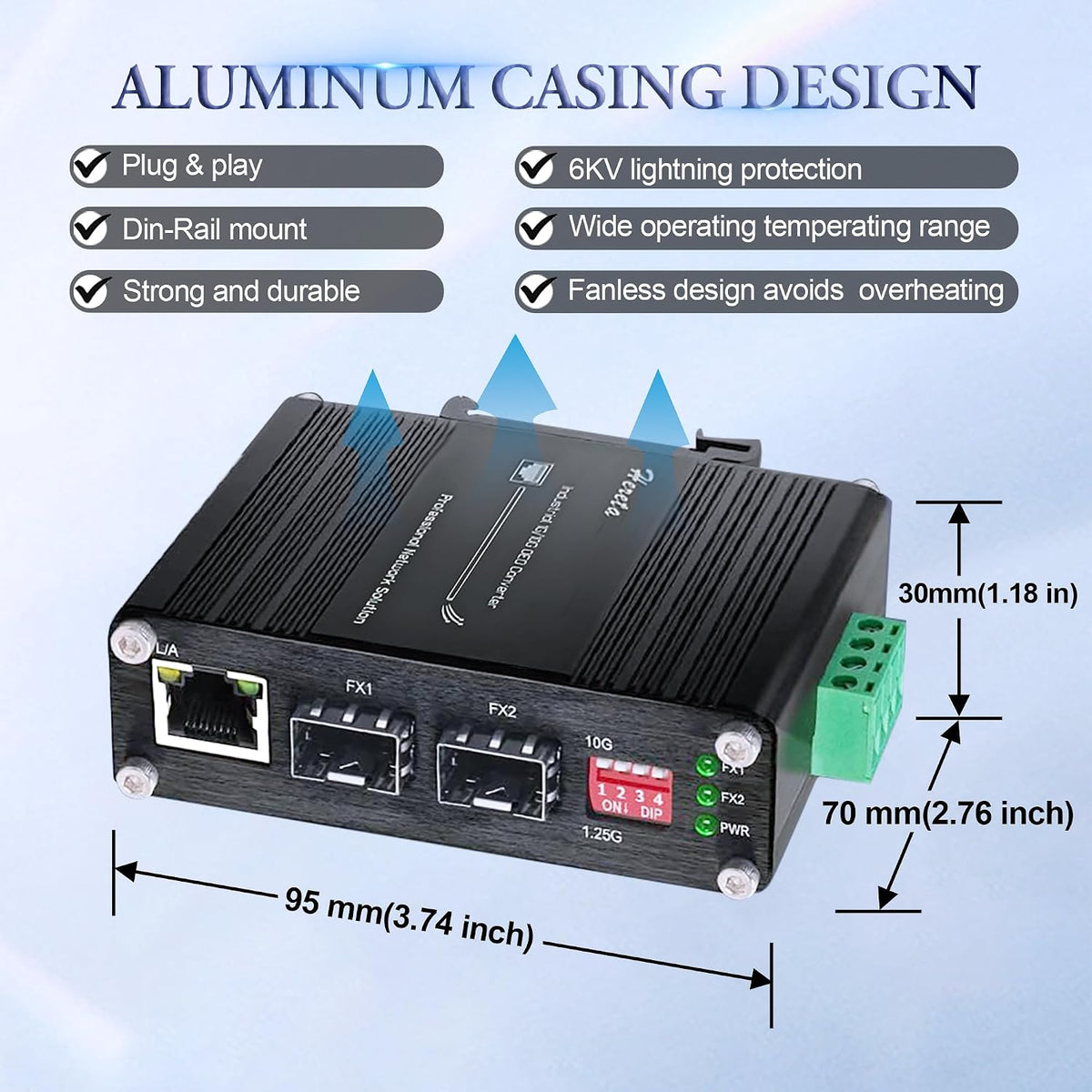

- Made of Dustproof, Close Design IP40 and Rugged High-strength Aluminium Alloy Case

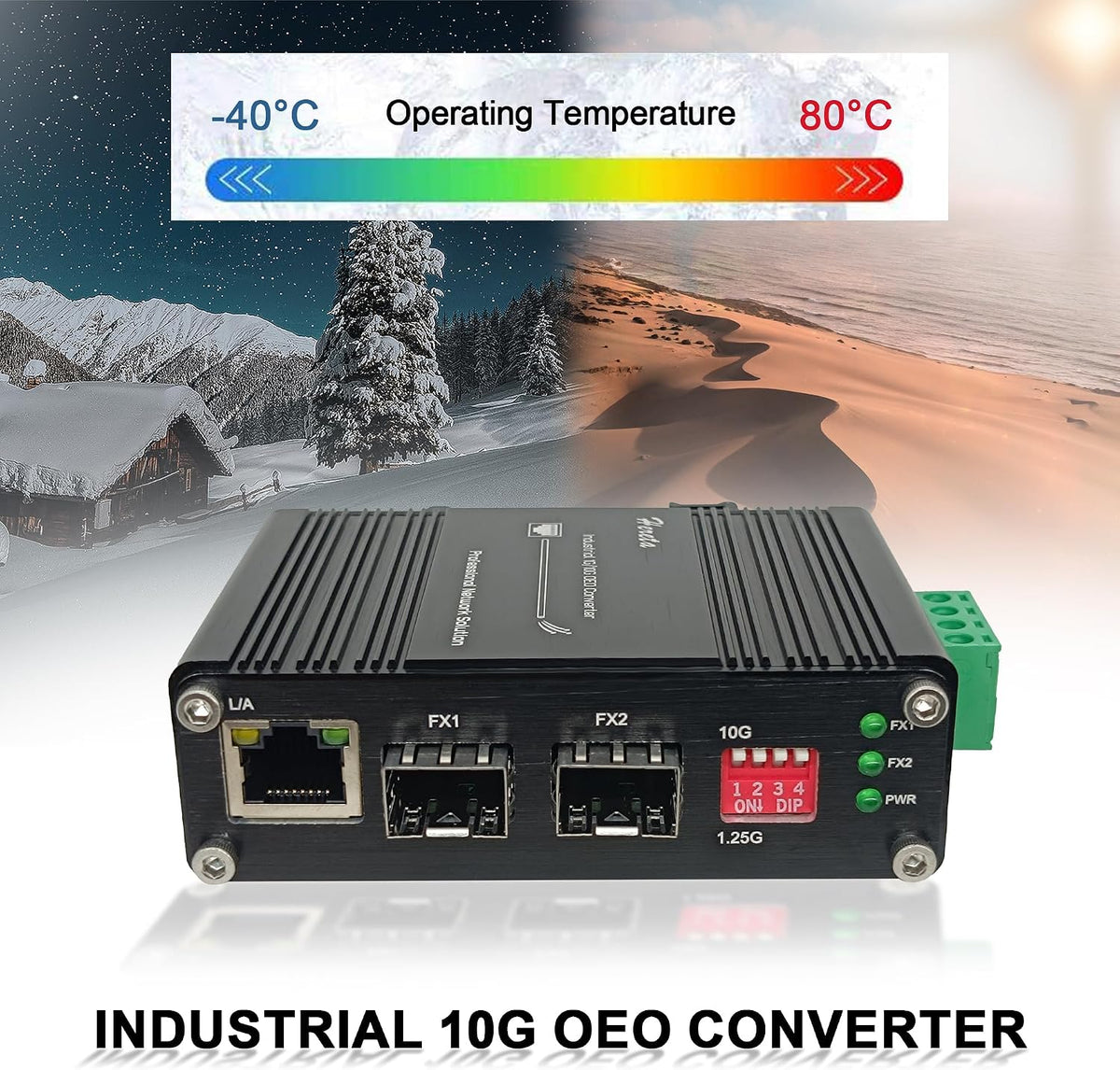

- Work in Operating Temperature -40°C to 80°C (-40°F to 176°F)

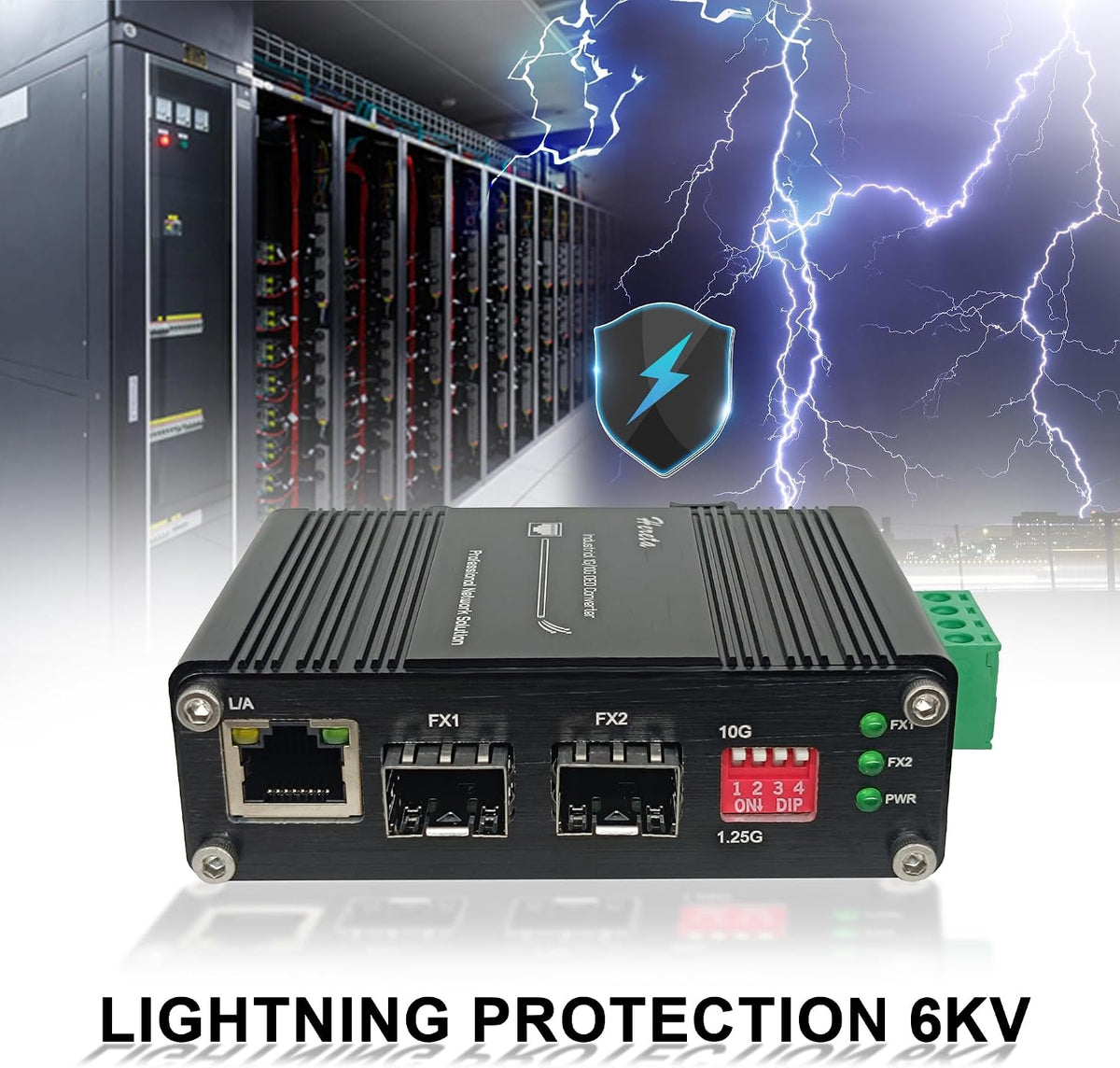

- With Lightning Protection
- Can be Used in Wide Range of Scenarios,such as Manufacturing,Traffic,Smart City,etc.
Industrial 10G OEO Converter
|
Industrial 10G Ethernet Media Converter
|
|
|---|---|---|
| Customer Reviews |
4
|
2
|
| Price | $157.99 | $179.79 |
| RJ45 (BASE-T) Port | 1G | 100/1G/2.5G/5G/10G |
| SFP (BASE-X) Slot | 1.25G/10G | 10G |
| DIP Switch | â | â |
| IP40 Aluminum Case | â | â |
| Input Power | 12~48VDC, Redundant Power (4-pin Terminal Block) | 12~48VDC, Redundant Power (4-pin Terminal Block) |
| Operating temperature | -40°C to 80°C (-40°F to 176°F) | -40°C to 80°C (-40°F to 176°F) |
| Features | Support 3R function (Regeneration, Reshaping, Re-timing); ITUT prescribed DWDM/CWDM wavelength, and can also display itâs DDM function; optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back | Support 20Gbps fabric; 16K Jumbo Frame; 9K Address Table |
| Mounting | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount |

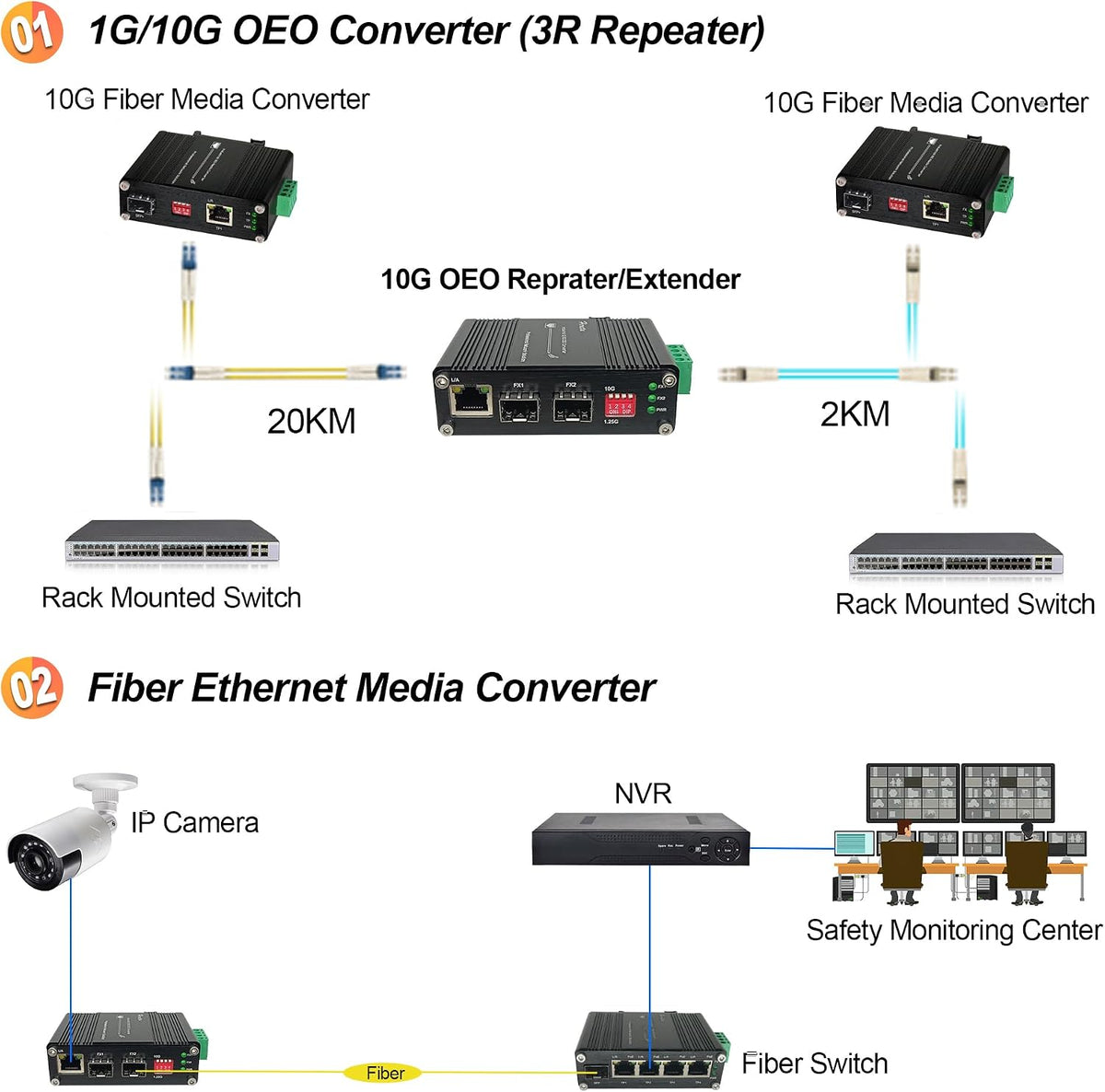

- ãDual SFP+ Slots | Fiber-to-Fiber 10G OEO RepeaterãLong-Distance Optical Extension Equipped with 2 hot-pluggable SFP+ slots to work as a 10G fiber repeater for fiber-to-fiber transmission up to 80km. It extends backbone links for MAN, SAN and data center networks, operating reliably at -40°C to 80°C (-40°F ~ 176°F) in industrial harsh environments. Full LED indicators display real-time port connection status for easy inspection.
- ã1x Gigabit RJ45 Port | Fiber-to-Copper Media ConverterãDual-Purpose All-in-One Unit When matching one SFP+ fiber port with the RJ45 copper port, it converts 1Gbps fiber signal to Ethernet copper signal, supporting transmission up to 120km over single-mode fiber. This dual-design eliminates the need to buy two separate converters, cutting hardware costs for surveillance, campus and factory LAN deployments.
- ãProfessional 3R Signal Regeneration FunctionãUltra-Low Latency Stable Transmission Integrated complete 3R functions (Regeneration, Reshaping, Re-timing) to recover attenuated long-distance optical signals without distortion, delivering transparent forwarding with ultra-low latency. It supports hot-swap SFP+ modules, ideal for continuous 24/7 core network operation without shutdown during maintenance.
- ãRich Optical Test & Rate Switch FeaturesãFlexible Wavelength Compatibility Supports 1310nm/1550nm, CWDM and DWDM optical modules with built-in DDM digital diagnostic for real-time optical power monitoring. It provides loopback test for fast on-site fault troubleshooting and jumbo frame support. The 4-digit DIP switch lets you switch between 1.25G and 10G fiber rates to match diverse network devices.

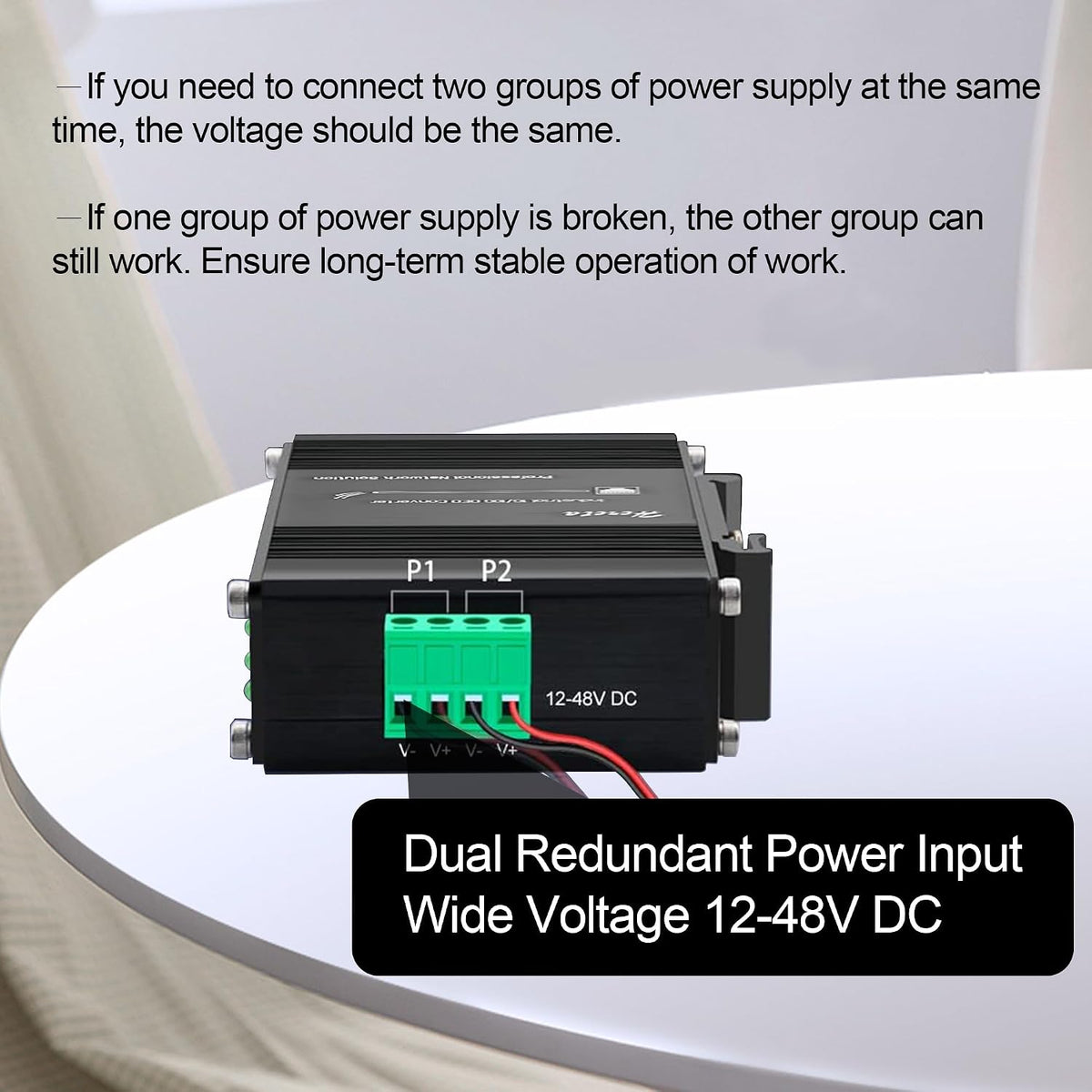

- ãIndustrial-Grade Rugged Protection & Full CertificationsãDual Mount for All Scenarios Compact IP40 dustproof aluminum housing supports DIN-Rail and wall mounting. It adopts 12~48VDC dual redundant power input with overload auto-reset, reverse polarity defense and 6KV lightning surge protection compliant with IEC61000 EMC standards. With >200,000 hrs MTBF, max 8W low power consumption and CE/FCC/RoHS/ISO9001 certifications, widely used in telecom rooms, data centers, highway monitoring and lab testing projects.
| Brand | Hereta |
| Data Transfer Rate | 10 gigabits_per_second |
| Special Feature | 3R Functionality, Multi-Protocol Support, Wide Temperature Range, Lightning Protection, DIP Switch & Hot Plugging, Industrial Grade Design See more |
| Color | ETH-IMC2402-OEO |
| Included Components | Industrial 10G Fiber Media Converter x 1, L-shaped wall mount bracket x 1, Quick Start Guide x 1 |
