TYT TH-9800 Quad Band Mobile Transceiver 50W Amateur Mobile Car Ham Radio
TYT TH-9800 Quad Band Mobile Transceiver 50W Amateur Mobile Car Ham Radio

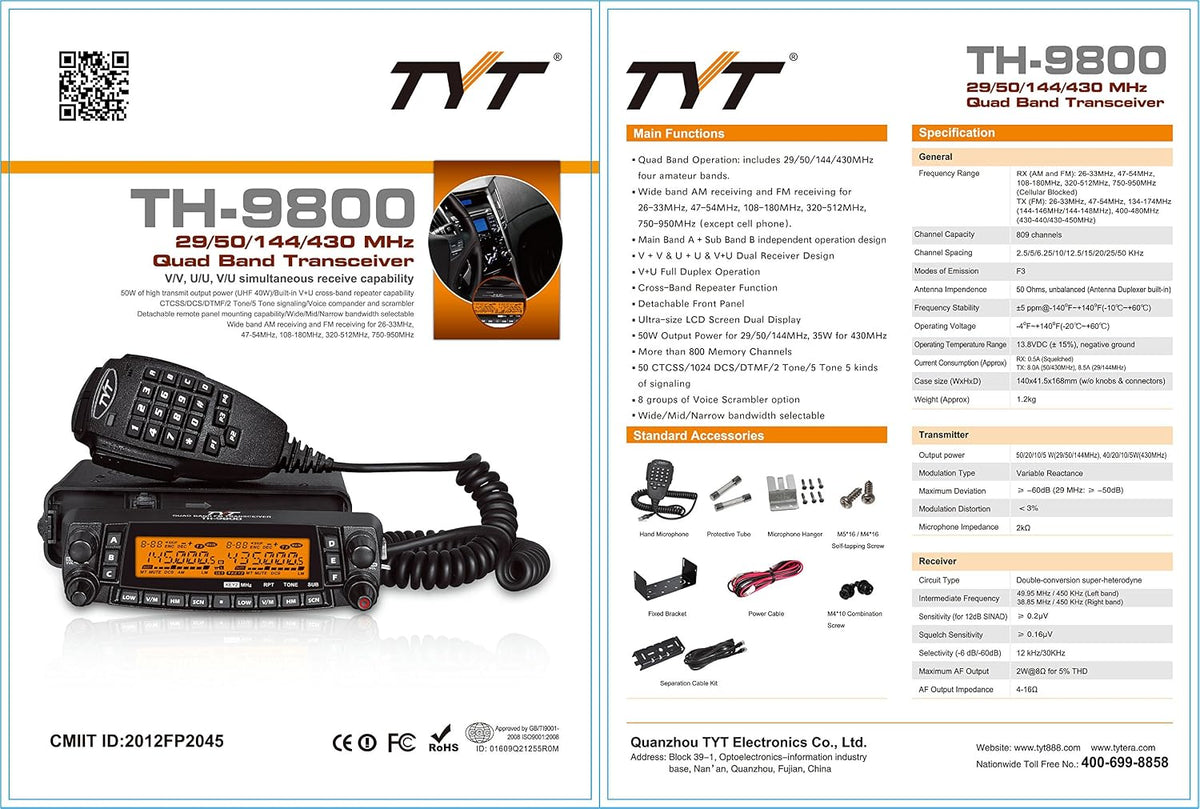

MAIN FEATURES: â Output Power VHF: 50/20/10/5W UHF: 40/20/10/5W â 10M/6M/2M/70CM Amateur Quad Band Mobile Radio â Wide band AM receiving and FM receiving for 26-33MHz, 47-54MHz, 108-180MHz, 320-512MHz, 750-950MHz,(except cell phone). â Dual Band/Dual Receive: (Full Duplex) â Built-in V+U cross-band repeater and full duplex capability â 800 standard memory channels with multiple memory systems â Standard 50 groups of CTCSS tone and 104 groups of DCS code â DTMF / 2-Tone / 5-Tone for selective calling â Automatic Repeater Shift (ARS) â Antenna Connection: Single SO-259s â Operating Voltage: 13.8V Specification: General Frequency Range: TX: 28-29MHz (10M), 50-54MHz (6M), 144-148MHz (2M) & 420-450MHz (70CM), RX: 26-33MHz, 47-54MHz, 110-180MHz (with AM Air Band), 350-399MHz, 430-512MHz & 750-950MHz(except cell phone) Channel Steps: 2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50/100 KHz Modes of Emission: FM Antenna Impendence: 50 Ohms, unbalanced(Antenna Duplexer bulit-in) - Frequency Stability: ±5 PPM - Operating Voltage: -20â~+60â - Supply Voltage: 13.8V DC (±5%) - Current Cunsumption(Approx): RX: 0.5A (Squelched);TX:8.0A (50/430MHz), 8.5A(29/144MHz) - Case Size(WXHXD): 140x41.5x168mm (w/0 knobs & connectors) - Weight(Approx): 2.6lb (1.2Kg) Transmitter: - Output Power: 50/20/10/5W(29/50/144MHz), 40/20/10/5W(430MHz) - Modulation Type: Variable Reactance - Maximum Deviation: ±5KHz Spurious Radiation: Less than -60dB (29MHz: Better less than -50dB) - Modulation Distortion: Less than 3% - Microphone Impedance: 2kΩ - DATA jack Impedance: 10KΩ Receiver: - Circuit Type: Double-conversion super-heterodyne - Intermediate Frequency: 45.05MHz/450KHz(left band) 47.25MHz/450KHz(right band) - Sensitivity(for 12dB SINAD): Better less than 0.2μV - Squelch Sensitivity: Better less than 0.16μV - Selectivity(-6dB/-60dB): 12KHz/30KHz - Maximum AF Output: 2W@8Ω for 5% THD - AF Output Impedance: 4-16Ω Package Content: 1*TYT TH-9800 Mobile Radio 1*Speaker Mic (DTMF Function) 1*DC power cable with fuse holder 1* Bracket and Screws 1*User Guide
- 1.Nice Entry Level Quad Band Radio: Quad Band Transmit, Twin Receive, Dual Display FM Radio Transceiver for VHF: 2M (50W) / UHF : 70CM (40W).
- 2.Features:Cross Brand Repeater, Multiple Memory Systems with 800 Standard Memory Channels, 50 CTCSS Tones, 1024 DCS Codes (PL & DPL), DTMF, 2 tone/5tone signaling, A+B dual Band Operation, ANI, ARS, Display Brightness setting & more!

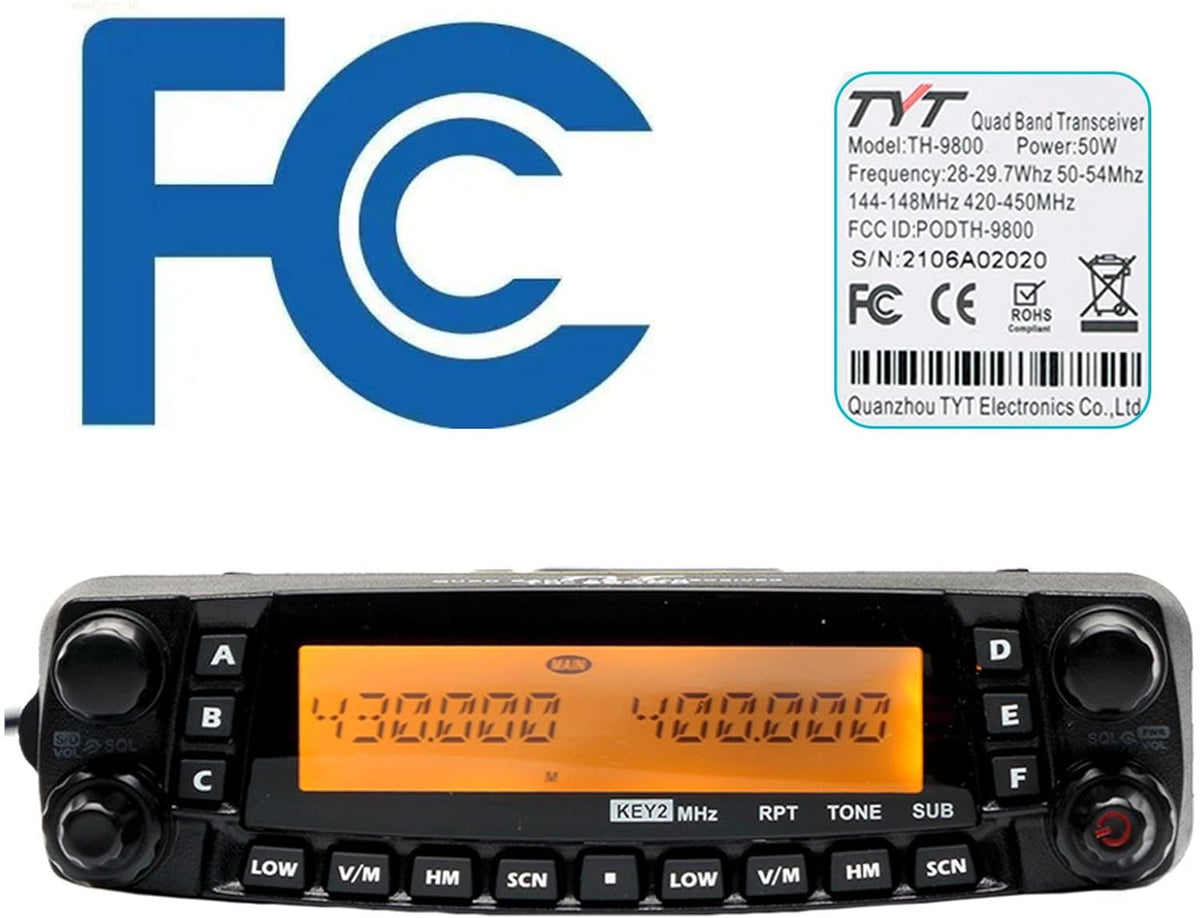

- 3.FCC Part Certified (FCC ID PODTH-9800). Frequency: TX: 10M (29Mhz), 6M (52Mhz), 2M (146Mhz) & 70cm (440Mhz), RX: 26-33/47-54/110-180(with AM Air Band)/350-399/430-512/750-950MHz(except cell phone).
- 4.Chirp Support &Software is available free from TYT Website. To use the programming cable, you will need to install the driver. If you encounter any issues, please contact us.

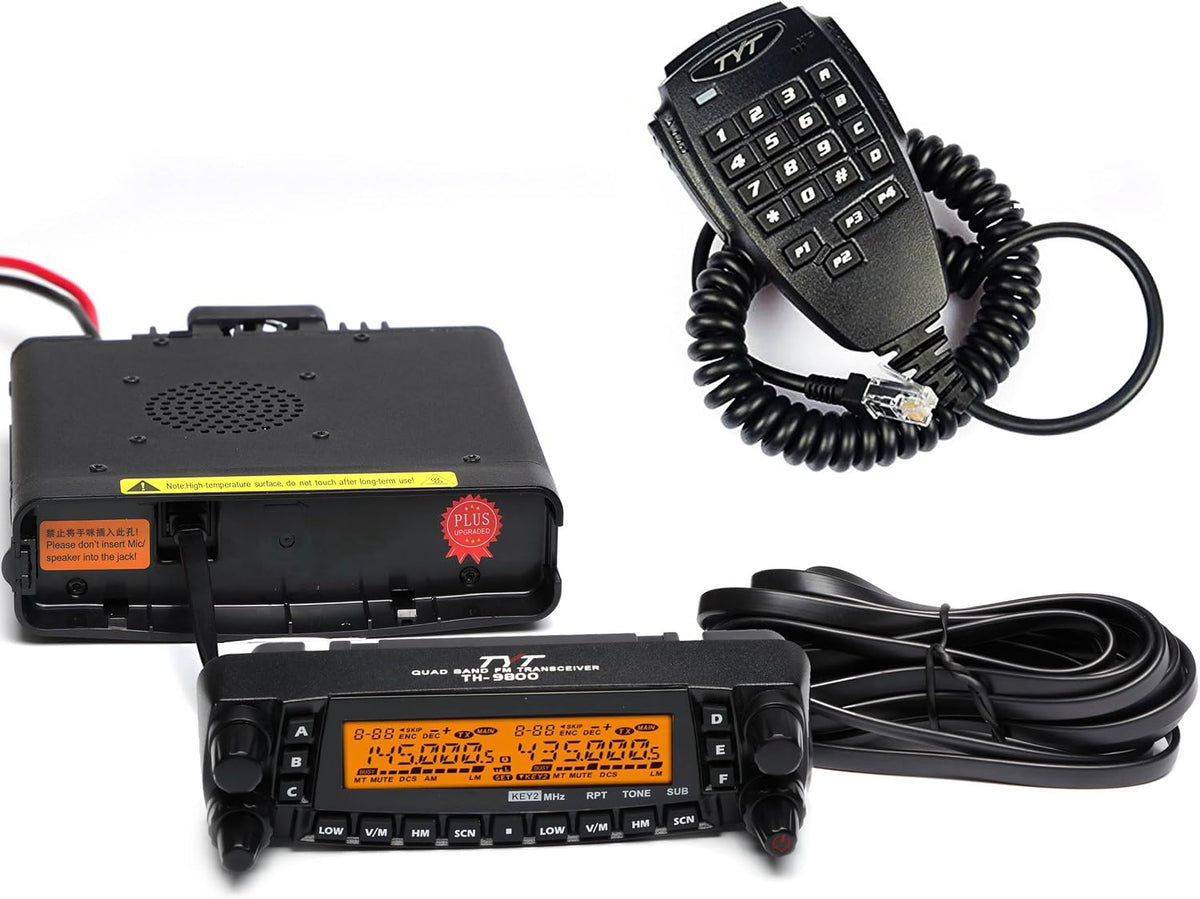

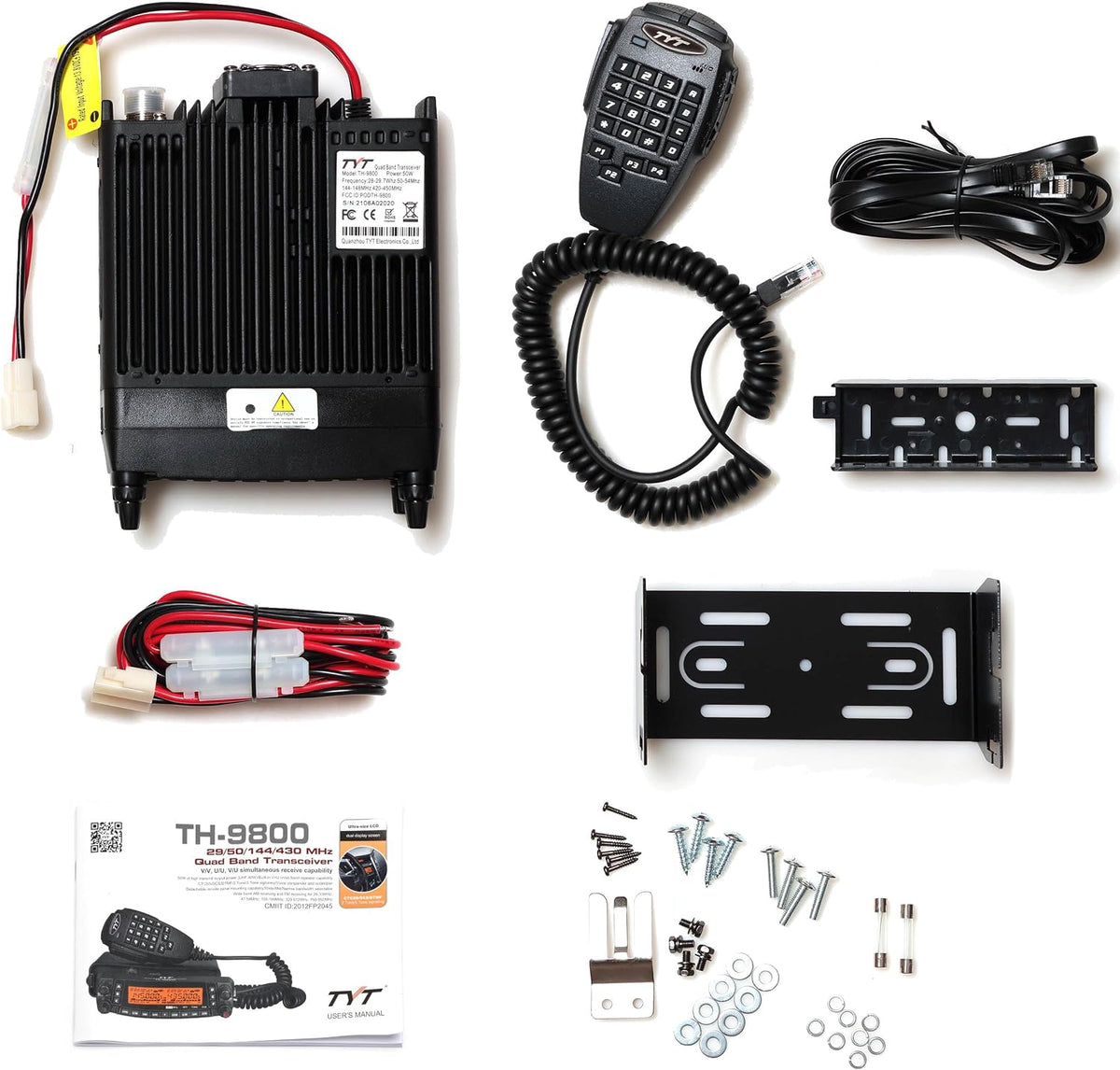

- 5.Kit Includes: 1*TYT TH-9800 Mobile Radio, 1*Speaker Mic (DTMF Function), 1*DC power cable with fuse holder, 1* Bracket and Screws, 1*User Guide
| Brand | HESENATE |
| Color | Black |
| Number of Channels | 800 |
| Special Feature | 50 CTCSS Tones, 1024 DCS Codes, 800 Standard Memory Channels, Cross Brand Repeater, Quad Band Radio |
| Frequency Range | VHF: 2M (50W) / UHF : 70CM (40W) |
| Talking Range Maximum | 40 kilometer |
| Voltage | 13.8 volts |
| Water Resistance Level | Not Water Resistant |
| Product Dimensions | 6.6"D x 5.5"W x 1.57"H |
| Included Components | 1* Bracket and Screws, 1*DC power cable with fuse holder, 1*Speaker Mic (DTMF Function), 1*TYT TH-9800 Mobile Radio, User Manual See more |
